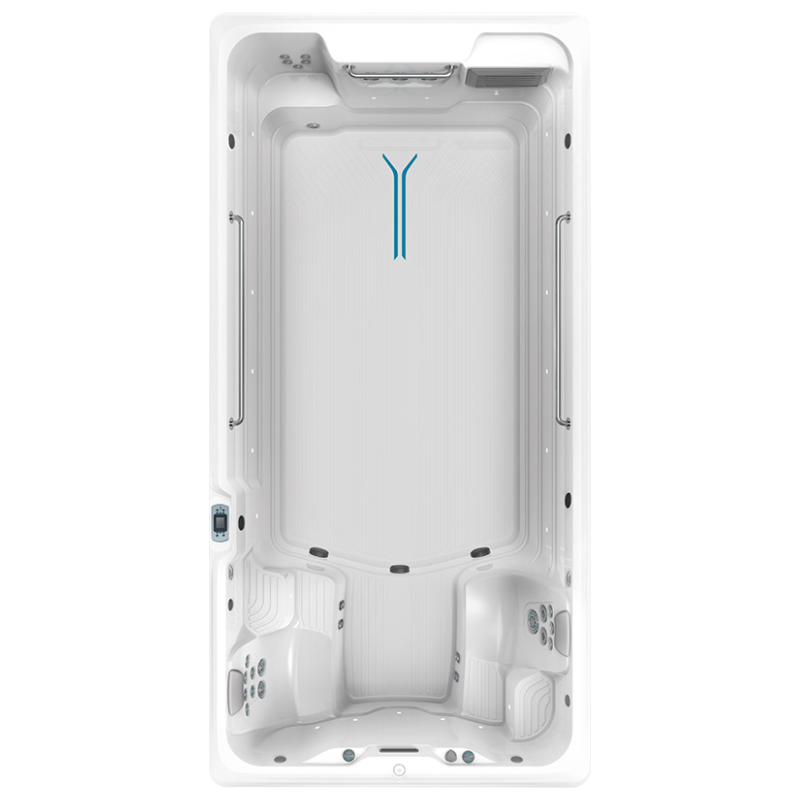

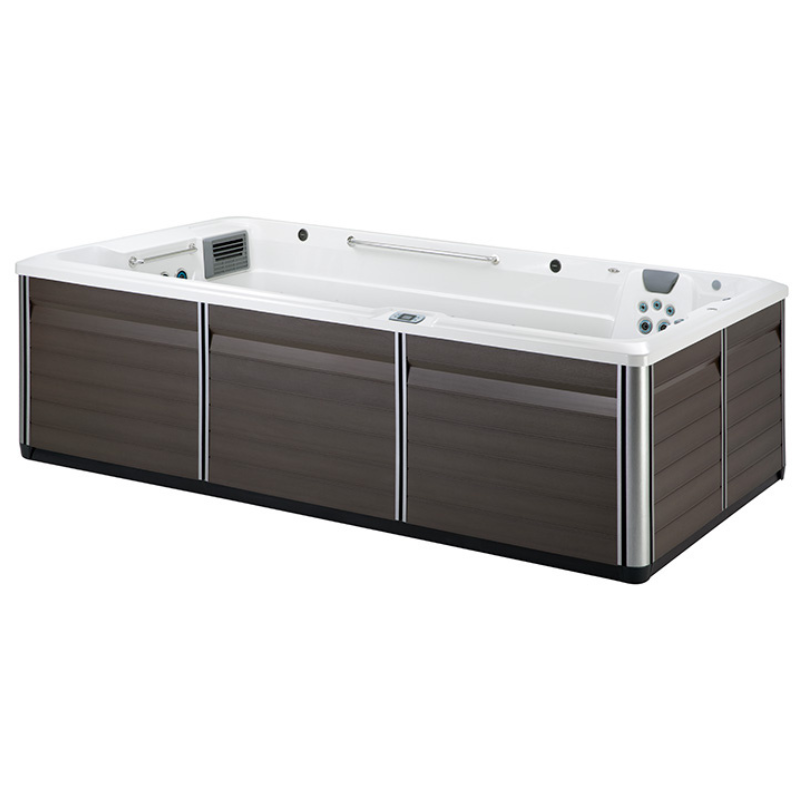

R-Series Swim Spas R500
Endless Pools

Enjoy fitness, relaxation, and family fun at an affordable price point. The R500 swim spa features three airless swim jets to provide ideal resistance for workouts and tethered swimming. Unwind with five ergonomic spa jets and 27 soothing hydromassage jets.

Request Pricing & Availability


  • Dimensions: 15’ L x 89” W x 50” H
  • Water Capacity: 1,785 Gallons
  • Weight: 2,055 lbs. (Dry) / 18,675 lbs. (Filled*)
  • Shell Color Options: Alpine White or Ice Gray
  • Cabinet Color Options: Mocha or Gray
  • Swim Technology: 3 Swim Jets - Max 215 Gallons Per Minute
  • Swim Jet Pumps: 2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – (1) Dual Speed
  • Hyrdomassage Seats: 5 Seats
  • Hyrdomassage Jets: 1 Large Jet, 2 Rotary Jets, 2 Directional Jets, 22 Mini Jets
  • Hyrdomassage Jet Pump: 2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – Dual Speed Pump
  • Control System: LCD Control Panel, 230v/30amp, 60 Hz, Field Adjustable 230v/60amp
  • Water Feature: 1 Illuminated Waterfall
  • Water Management System: CD Ozone
  • Effective Filtration Area: 100 Square Feet
  • Lighting System: 20 Multi-Color LED Points of Light, Exterior LED Lighting (optional*)
  • Substructure: Wood
  • Base Pan: Thermoformed ABS Base Pan
  • Heater: 4000 watt
  • Energy Efficiency: Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law
  • Stainless Steel Grab Rails: 3 Satin Stainless Steel Rails
  • Music Option: 8 Speakers + Subwoofer, Bluetooth® Enabled
  • Exercise Equipment Options: Aquabike, Swim Tether, Resistance Bands, and Floor Mirror
