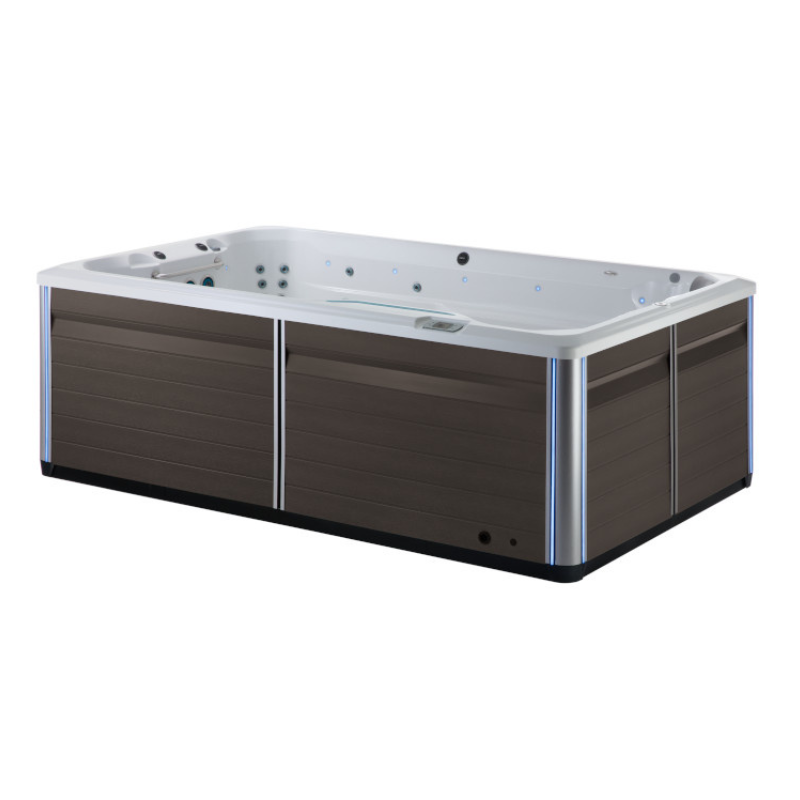

R-Series Swim Spas R220
Endless Pools

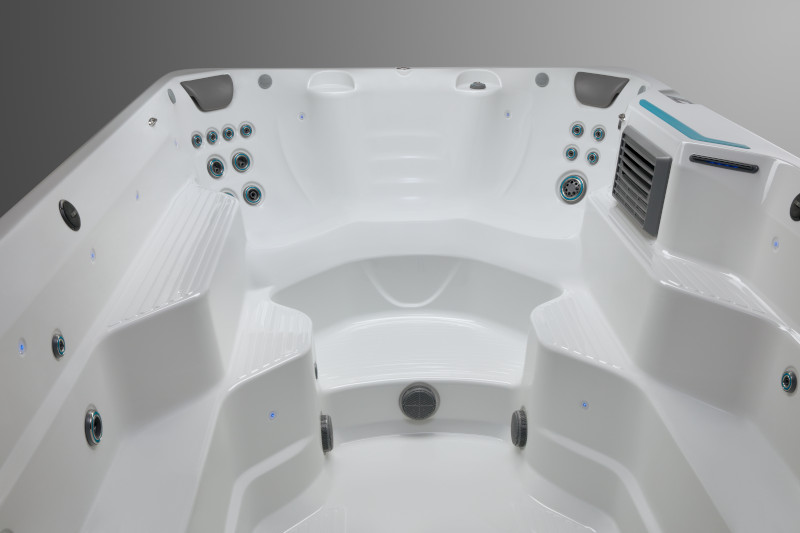

This budget-friendly, 12’ swim spa seats nine, with two long benches along the sides and five molded seats in the back, plus 31 thoughtfully placed hydromassage jets to provide maximum comfort and relaxation. Add optional LED lighting and a Bluetooth® music system to create your dream space for entertaining, fun, and relaxation. The versatile R220 provides plenty of options for low-impact aquatic exercise, with three airless swim jets to provide resistance and power up your workout. Keep your routine fresh by adding exercise accessories like the Swim Tether, Aquatic Bike, or Resistance Bands.

Request Pricing & Availability


  • Dimensions: 12’ L x 89” W x 50” H
  • Water Capacity: 1,080 Gallons
  • Weight: 1,765 lbs. (Dry) / 12,515 lbs. (Filled*)
  • Shell Color Options: Alpine White or Ice Gray
  • Cabinet Color Options: Mocha or Gray
  • Swim Technology: 3 Swim Jets - Max 215 Gallons Per Minute
  • Swim Jet Pumps: 2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – (1) Dual Speed
  • Hyrdomassage Seats: 9 Seats
  • Hyrdomassage Jets: 1 Large Jet, 2 Rotary Jets, 4 Directional Jets, 24 Mini Jets
  • Hyrdomassage Jet Pump: 2.5 HP Continuous Duty; 5.2 HP Breakdown Torque – Dual Speed Pump
  • Control System: LCD Control Panel, 230v/30amp, 60 Hz, Field Adjustable 230v/60amp
  • Water Feature: 1 Illuminated Waterfall
  • Water Management System: CD Ozone
  • Effective Filtration Area: 100 Square Feet

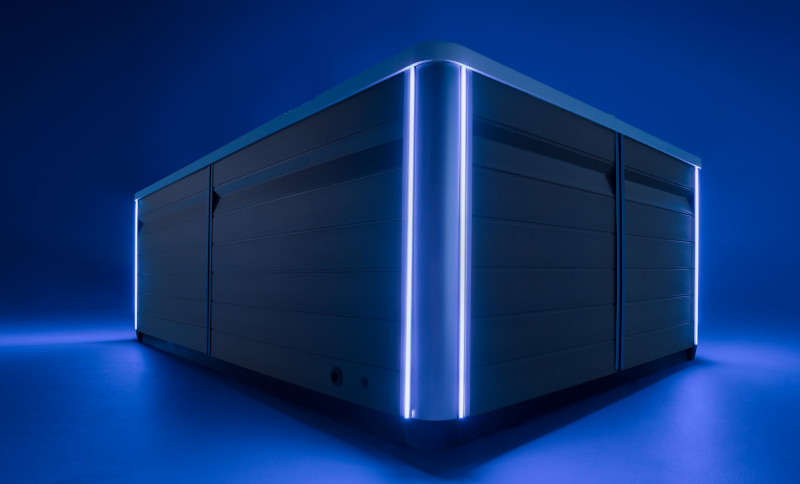

  • Lighting System: 15 Multi-Color LED Points of Light, Exterior LED Lighting (optional*)
  • Substructure: Wood
  • Base Pan: Thermoformed ABS Base Pan
  • Heater: 4000 watt
  • Energy Efficiency: Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California Law
  • Stainless Steel Grab Rails: 1 Stainless Steel Rail
  • Music Option: 8 Speakers + Subwoofer, Bluetooth® Enabled
  • Exercise Equipment Options: Aquabike, Swim Tether, Resistance Bands, and Floor Mirror
