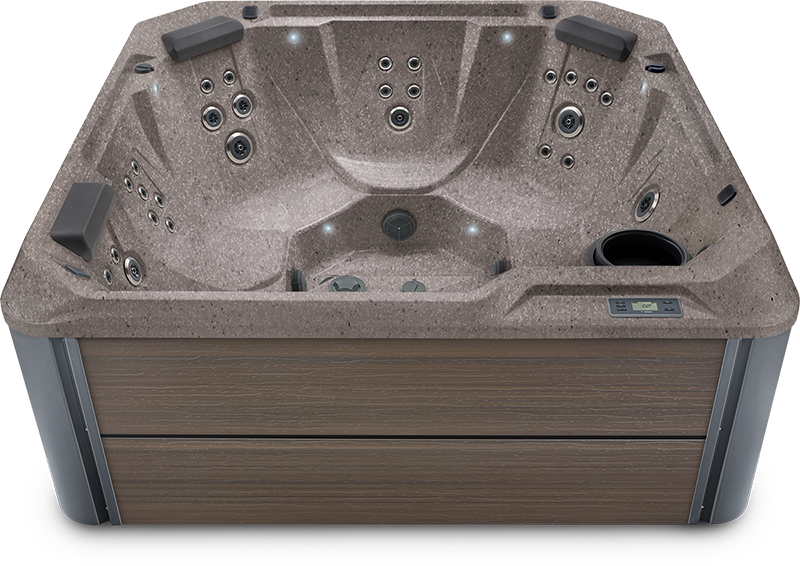

Relay
Hot Spring
Request Pricing & AvailabilityRelax in Style
Equipped with cushioned headrests, 40 targeted jets and room for six people including a spacious lounger, there's no doubt that the Relay hot tub is destined for gatherings any time of year. Enjoy the multi-color LED lights for increased relaxation for your long, rejuvenating soak.
- Seating Capacity: 6 Adults
- Dimensions
- 7' x 7' x 36"
- 2.13m x 2.13m x .92m
- Water Capacity: 340 gallons/1,290 liters
- Weight
- 830 lbs./375 kg dry
- 4,715 lbs./ 2,140 kg filled*
- Jet Count: 40
- Hot Tub Jets:
- 3 XL Directional Hydromassage jets
- 2 XL Rotary Hydromassage jets
- 3 Directional Hydromassage jets
- 2 Rotary Hydromassage jets
- 30 Directional Precision® jets
- Water Care System: FROG® In-Line Cartridge Ready, Ozone (optional)
- Control System
- IQ 2020® with LCD control panel
- 230v/50amp, 60Hz
- Includes G.F.C.I. protected sub-panel
- Heater: No-Fault®, 4000w/230v
- Jet Pump 1
- Wavemaster® 6200
- Two-speed
- 1.5 HP, continuous duty
- 3.2 HP, breakdown torque
- Jet Pump 2
- Wavemaster® 6000
- One-speed
- 1.5 HP, continuous duty
- 3.2 HP, breakdown torque
- Vinyl Cover
- 3.5" to 2.5" tapered
- 2 lb. density foam core
- 7' x 7' x 36"
- 2.13m x 2.13m x .92m
- 830 lbs./375 kg dry
- 4,715 lbs./ 2,140 kg filled*
- Hot Tub Jets:
- 3 XL Directional Hydromassage jets
- 2 XL Rotary Hydromassage jets
- 3 Directional Hydromassage jets
- 2 Rotary Hydromassage jets
- 30 Directional Precision® jets
- IQ 2020® with LCD control panel
- 230v/50amp, 60Hz
- Includes G.F.C.I. protected sub-panel
- Wavemaster® 6200
- Two-speed
- 1.5 HP, continuous duty
- 3.2 HP, breakdown torque
- Wavemaster® 6000
- One-speed
- 1.5 HP, continuous duty
- 3.2 HP, breakdown torque
- 3.5" to 2.5" tapered
- 2 lb. density foam core
