Prism
Hot Spring Spas

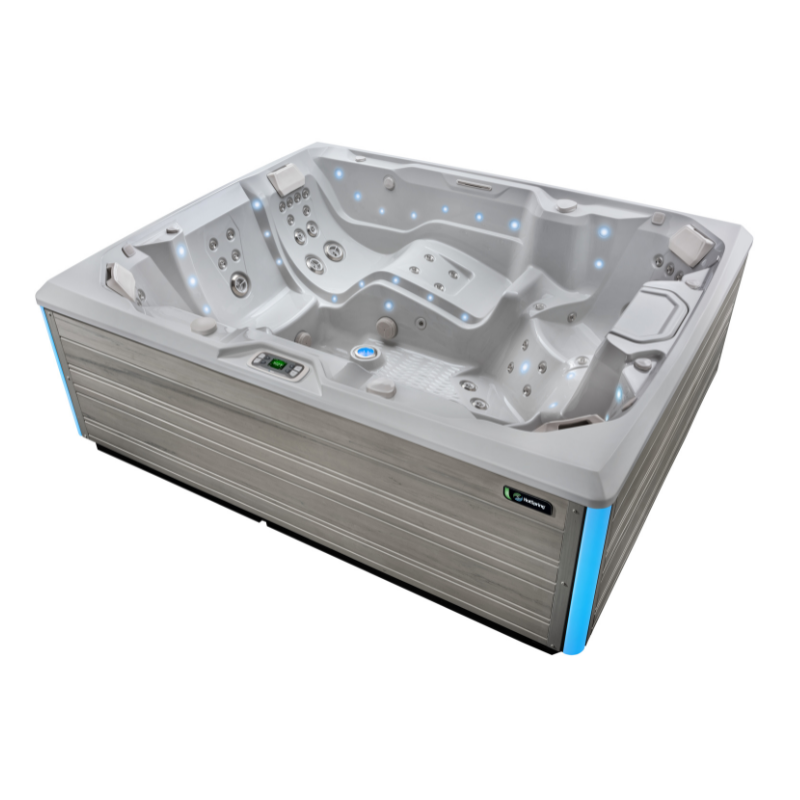

The largest spa in the Hot Spring Limelight Collection, the Prism seats seven adults and features a relaxing lounge for your enjoyment. Built with a powerful, extra-large jet for enhanced foot and leg massage, along with several directional jets in the corner and side seats. Kick back and relax with 73 jets that relieve tension in targeted areas of your body.
Specifications
- Seating Capacity: 7 Adults
- Dimensions
- 7’7” x 9’2” x 38”
- 2.31m x 2.79m x 0.97m
- Water Capacity: 525 gallons/1,990 liters
- Weight
- 1,190 lbs./540 kg Dry
- 6,795 lbs./3,085 kg Filled

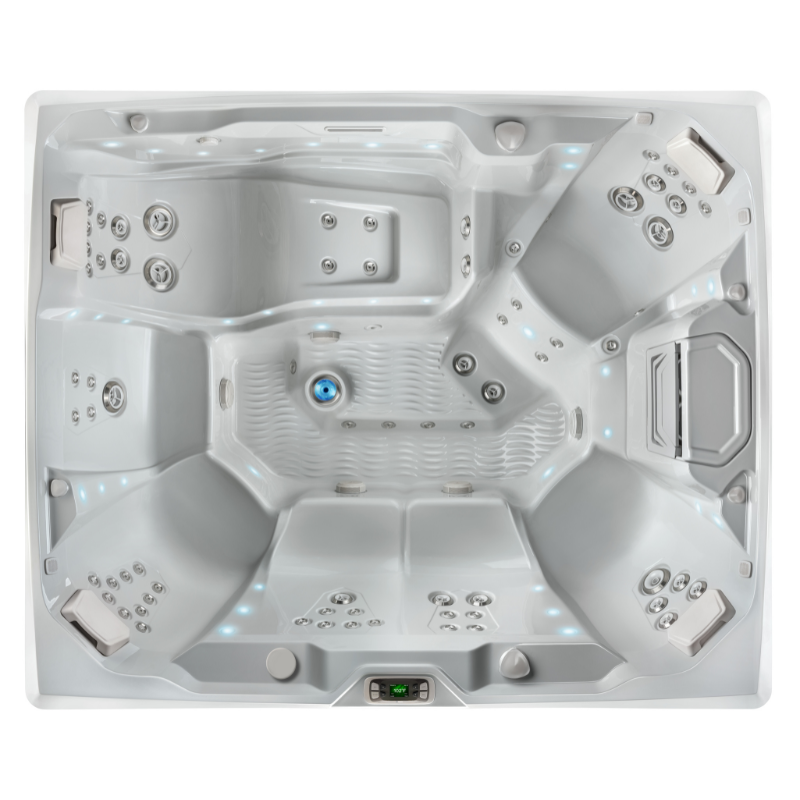

- Jet Count: 73
- 1 XXL Footwell Jet
- 1 XL Dual Rotary Jet
- 2 XL Single Rotary Jets
- 3 XL Directional Jets
- 7 Standard Dual Rotary Jets
- 4 Standard Single Rotary Jets
- 4 Standard Directional Jets
- 10 Rotary Precision Jets
- 41 Directional Precision Jets
- Lighting System: Raio® multi-color interior points of light (38) Exterior multi-color lighting with timer

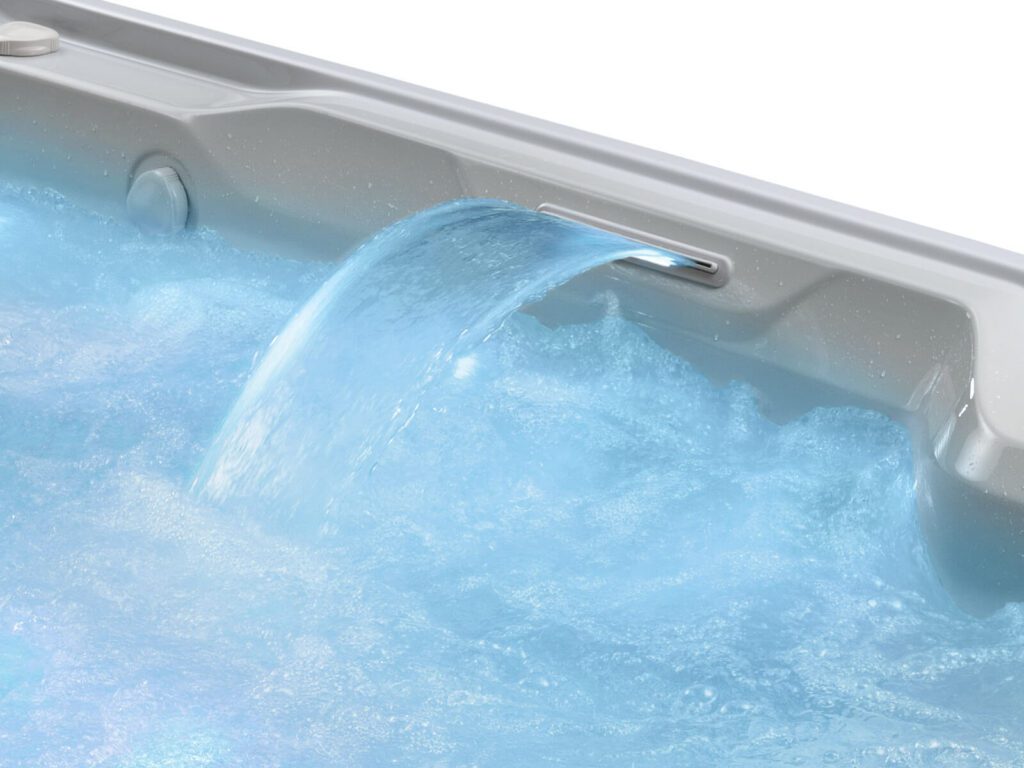

- Water Features: Vidro® backlit ribbon waterfall
- Control System
- IQ 2020® with LCD control panel
- 230v/50amp, 60Hz
- Includes G.F.C.I. protected sub-panel
- Heater: No-Fault®, 4000w/230v
- Jet Pump 1
- Wavemaster® 9200
- One-speed
- 2.5 HP, continuous duty
- 5.2 HP, breakdown torque
- Jet Pump 2
- Wavemaster® 9000
- One-speed
- 2.5 HP, continuous duty
- 5.2 HP, breakdown torque
- Jet Pump 3
- Wavemaster® 9000
- One-speed
- 2.5 HP, continuous duty
- 5.2 HP, breakdown torque
- Circulation Pump: SilentFlo 5000® for quiet continuous filtration
- Vinyl Cover
- 3.5" to 2.5" tapered
- 2 lb. density foam core with hinge seal
- Entertainment Systems (Optional): Wireless Sound System
