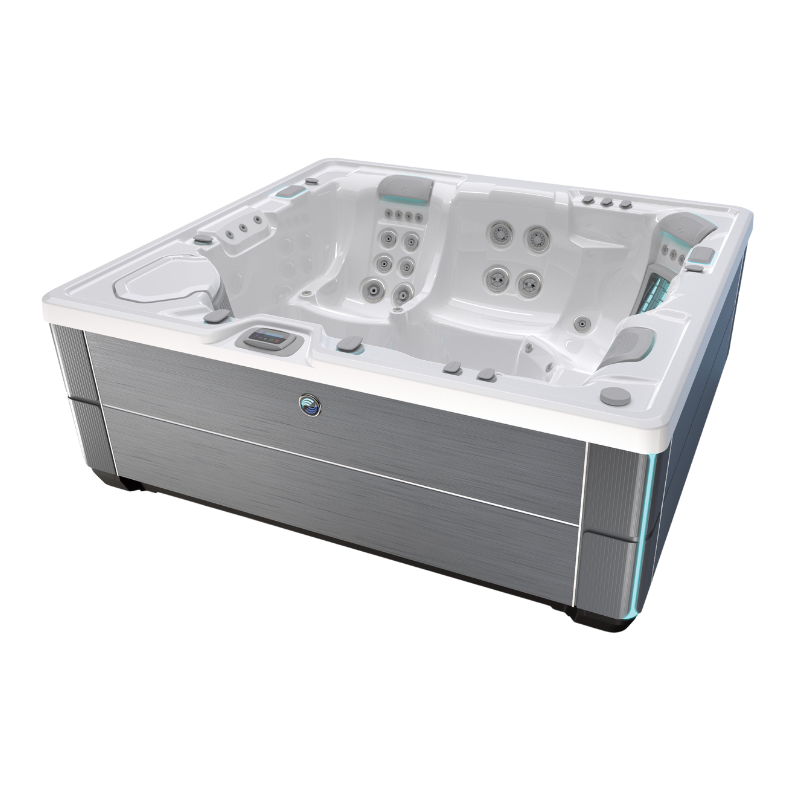

Envoy

Innovative Design & Style

Powered by 43 impactful jets, the Hot Spring Envoy packs a punch when it comes to the art of relaxing. With a variety of color options to accompany your design style and a state-of-the-art wireless remote control, what’s not to love?

• Seating Capacity: 5 Adults
• Dimensions
• 7'9" x 7'7" x 38"
• 2.36m x 2.31m x .97m
• Water Capacity: 390 gallons/1,475 liters
• Weight
• 830 lbs./375 kg dry
• 4,960 lbs./2,250 kg filled*

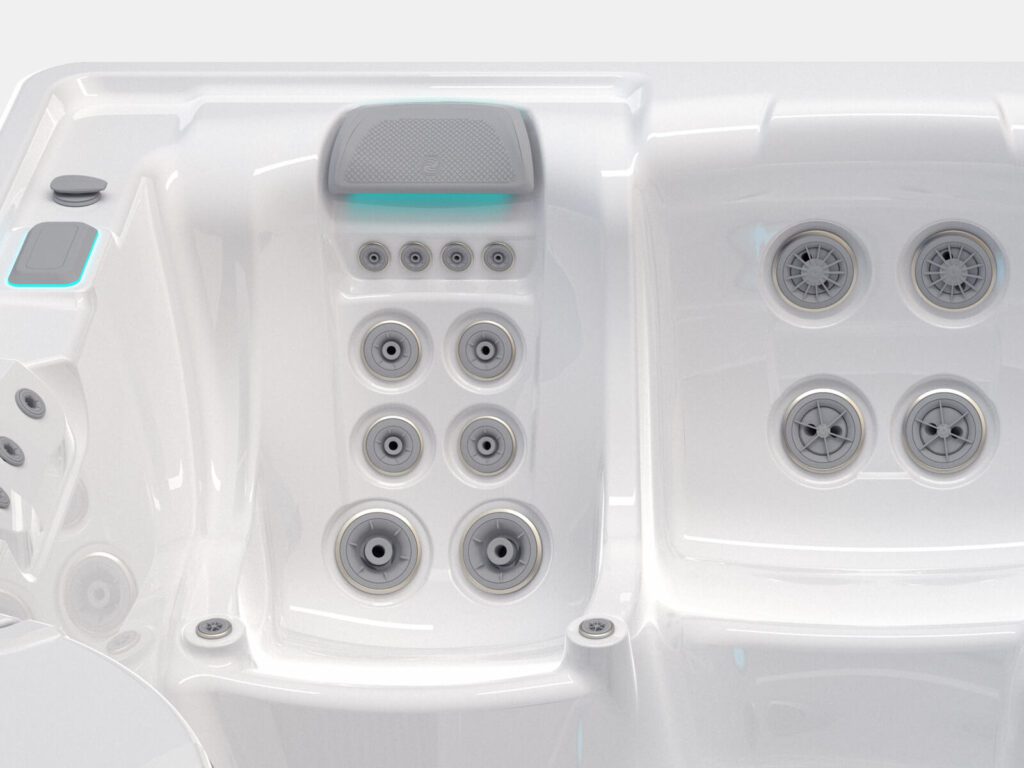

• Jet Count: 43
• Hot Tub Jets: 1

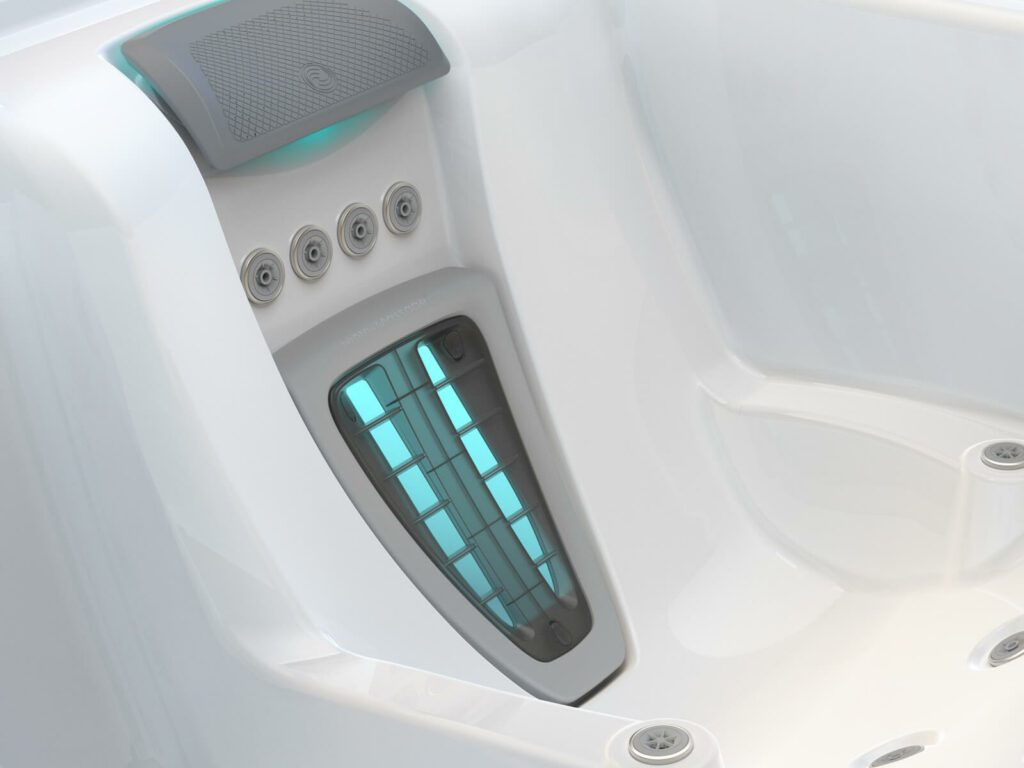

• Moto-Massage® DX jet (2): 2
• SoothingStream® jets: 3
• JetStream® jets: 2
• Rotary Hydromassage jets: 3
• Directional Hydromassage jets: 10
• HydroStream® jets: 2
• Rotary Precision® jets: 2
• 19 Directional Precision® jets
• Lighting System: Luminescence® multi-color four-zone
• Water Features: BellaFontana® with 3 illuminated arcs of water
• Control System
• IQ 2020® with wireless remote control
• 230v/50amp, 60Hz
• Includes G.F.C.I. protected sub-panel
• Heater: No-Fault®, 4000w/230v
• Jet Pump 1
• Wavemaster® 9000
• One-speed
• 2.5 HP, continuous duty
• 5.2 HP, breakdown torque
• Jet Pump 2
• Wavemaster® 8200
• Two-speed
• 2.0 HP, continuous duty
• 4.0 HP, breakdown torque
• Circulation Pump: SilentFlo 5000® for quiet continuous filtration
• Vinyl Cover
• 3.5" to 2.5" tapered
• 2 lb. density foam core with hinge seal
• Entertainment Systems (Optional): Wireless Sound System
